Drawing Steel Rod & Wire Tungsten Carbide Drawing Die

Drawing Steel Rod & Wire Tungsten Carbide Drawing Die

Drawing Steel Rod & Wire Tungsten Carbide Drawing Die Company Introduction Technique Parameter Ronen Group Is committed
Basic Info.
Model NO. RONEN
Surface Treatment Polish
Application Hardware, Home Use, Commodity, Car
Certification CE
Warranty 1 Year
Customized Customized
Tolerance +_0.04 mm
Drawing Dies Diameter 0.01mm-50mm
Price Factory Direct Supply Price
After Sales Service Provide Solutions Within 24 Hours
Application Range Drawing Dies
Custom Products Provide
Package Export Packing
Supply Ability 50000 Sets Per Month
Keywords Artificial Diamond Drawing Forming Dies Mold
Product Material Metal
Shaping Die Casting, Drawing Die
Product Vehicle Mould
Model Number Customized
Product Name Tungsten Carbide Drawing Die
Transport Package Wooden Case or as You Want
Specification Customized
Trademark RONEN
Origin Hebei, China
Production Capacity 10000PCS/Year
Product Description

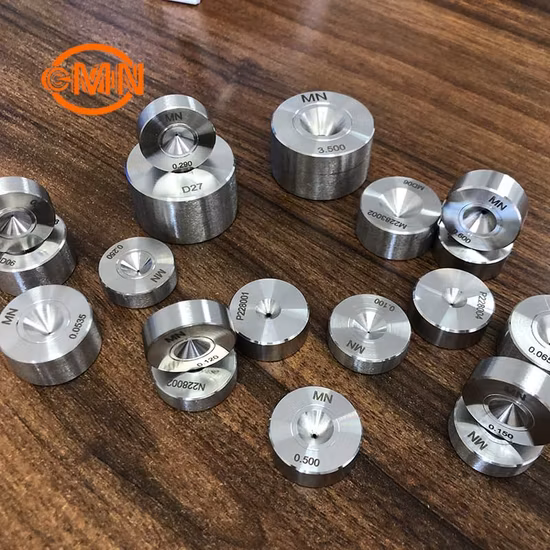

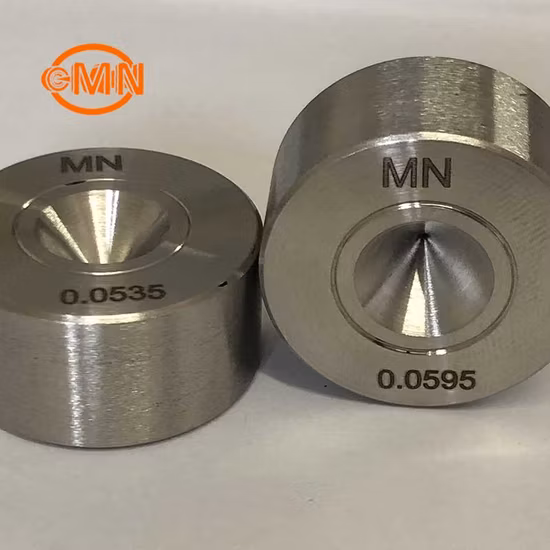

Drawing Steel Rod & Wire Tungsten Carbide Drawing Die

Company Introduction

Drawing Steel Rod & Wire Tungsten Carbide Drawing Die

Technique Parameter

Model Type

Fetures

Range of application

Artificial monocrystalline die

Natural diamond, good retentivity of hole roundness and stable quality

0.01mm-0.70mm

fine wires

Various shaped artificial diamond dies

Good finish, high precision and strong wear resistance

Gold & silver jewelery, copper wires, zipper flat wires, tooth flat wires, square CP wires, stainless steel shaped wires and other shaped wires

Natural diamond drawing die

High-precision wire drawing industry and its correct hole

0.01mm-1 .5mm

various fine metal wires

Nano drawing die

Forming a CVD diamond coating on the surface of tungsten carbide die

Strand wire and the drawing of nonferrous metal like copper, aluminum atc.

Artificial polycrystalline drawing die

Long service life, more repair times and wide range

0. 1mm-12.00mm

Round carbide drawing die

High wear resistance and high thermal conductivity

0. 15mm-50mm

Drawing of various metal wires, tubings and rods.

Various shaped carbide dies

With high-quality cemented carbide as the raw material

Drawing, reducing, scalping and extrusion of copper, alumium, iron, stainless stell, aluminum alloy and other metal wires,tubings and rods

Standard Tolerance Corresponding To Diameter
Diameter(mm)Tolerance(mm)Maximum out-of-roundness(mm)
<0.020+0 -1.5%0.5%
>0.020~0.025+0 -0.0003%0.0002
>0.025~0.050+0 -0.0004%0.0003
>0.050-0.075+0 -0.0006%0.0004
>0.075~0.100+0 -0.0008%0.0004
>0.100~0.200+0 -0.001%0.001
>0.200~0.500+0 -0.002%0.0015
>0.500~1.000+0 -0.003%0.002
>1.000-2.000+0 -0.004%0.0025
>2.000~3.500+0 -0.005%0.003
>3.500~5.500+0 -0.006%0.0035
>5.500~8.000+0 -0.007%0.004
>8.000~10.000+0 -0.008%0.0045
>10.000~12.000+0 -0.010%0.005
>12.000~15.000+0 -0.012%0.006
>15.000~18.000+0 -0.014%0.007
>18.000~21.000+0 -0.016%0.008
>21.000~24.000+0 -0.018%0.009
>24.000~30.000+0 -0.020%0.010

Ronen Group Is committed to designing and manufacturing of induction heating equipment, which are widely used in Machinery, Building Materials,Metallurgy, Paper Making, Automobile Manufacturing and other fields, to fully meet the needs of Steel Pipe Seam Welding,Stainless Steel Pipe Welding, Strip Heating, Vacuum Melting, Copper Pipe Welding, Steel Pipe Annealing, Refrigerator Tube Welding,Metal Heat Treatment, Metal Smelting, Welding, Brazing, Thermal Assembly and other Induction Heating Process Requirements, mainly include Spring Steel Wires, High-Strength Pipe Piles PC Steel Rods / PC Bar, Prestressed Steel Wire, Prestressed Concrete Strand, Rebar, Aluminum-Plastic Pipes, Wires and Cables Production Equipment lines. Ronen Group Domestic market share is more than 60%, and In recent years, we have exported our machines to USA, Europe, Russia, Egypt, Japan, Korea etc. more than 25 countries. Ronen will always be here for you!

Product Description

Artificial Monocrystalline die

Drawing Steel Rod &amp; Wire Tungsten Carbide Drawing Die

Tinned die series

Drawing Steel Rod &amp; Wire Tungsten Carbide Drawing Die

Drawing DiesApplicationWe mainly provide service for processing plants of stainless steel wire, tungsten molybdenum filament, gold wire, silicon aluminum wire, super-fine enamelled wire and super-fine noble metal wire. The thread throwing dies have a major product size from 0.01mm to 50mm (diameter) or the size based on the technical standard offered by the customer and we can keep a punctual delivery and contractual promise.Our service tenet is that customer' s satisfaction is our target. We sincerely wish to establish a bright and successful future together with partners around the world.
Ronen Group Workshop Show
Ronen Group Exhibition
Certifications

Packing and Shipping

FAQ:

Q: Are you manufacturer?
A:Yes, We are manufacturer. Q: How to order?
A:Please send us your inquiry by email, send message through Alibaba , Wechat, Whatsapp or others as you want. Q: What are the payment terms?
A: Pattern :we can accept T/T,Western Union ,Money Gram. Q: What is the whole business flow cooperation with us?
A: 1.Firstly,send your inquiry to us, make us have learned your requirement2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay 30% deposit.3.All of the goods, packing details, and B/L copy will be send to buyer after finished production. We will arrange shipment and provide original B/L after the buyer finished to pay the balance.
Not only the Good Machine, but also the Most Attentive ServiceIf any doubt,feel free to contact us with no doubt!RONEN always here for you!!
